Can You Put a Louvered Pergola Over an Air Conditioner?
Do not assume a louvered pergola is suitable over an outdoor air conditioner. The AC unit needs unobstructed airflow and access for service, and a roof that can close changes the conditions above it. Keep the unit outside the proposed roof footprint unless the equipment manufacturer and your HVAC contractor approve the specific arrangement.
Shade alone does not establish that a layout is suitable or that it will reduce cooling costs. Carrier explains that an outdoor condenser releases heat into the surrounding air and relies on airflow. The Trane outdoor-unit owner’s guide likewise calls for clear airflow around the coil. Neither source approves a pergola over your particular unit.
Check the equipment before marking the roof position
Record the outdoor unit’s model number, photograph its location, and find the installation manual for that exact model. Identify where air enters and exits; a top-discharge unit and a side-discharge unit should not be treated as interchangeable. Ask the HVAC contractor to compare the manual’s requirements with a drawing of the complete proposed roof.
- Show the closed roof. The Louvano Sera Motorized Louvered Pergola has remote-operated louvers that rotate from 0 to 120 degrees. An open setting is not a permanent opening, so do not assess only an open-roof photograph.
- Include the surrounding site. Show house walls, fences, proposed posts, and any future screening. Ask whether the arrangement could obstruct intake air or trap discharged heat. Do not add a screen later without reviewing the changed setting.

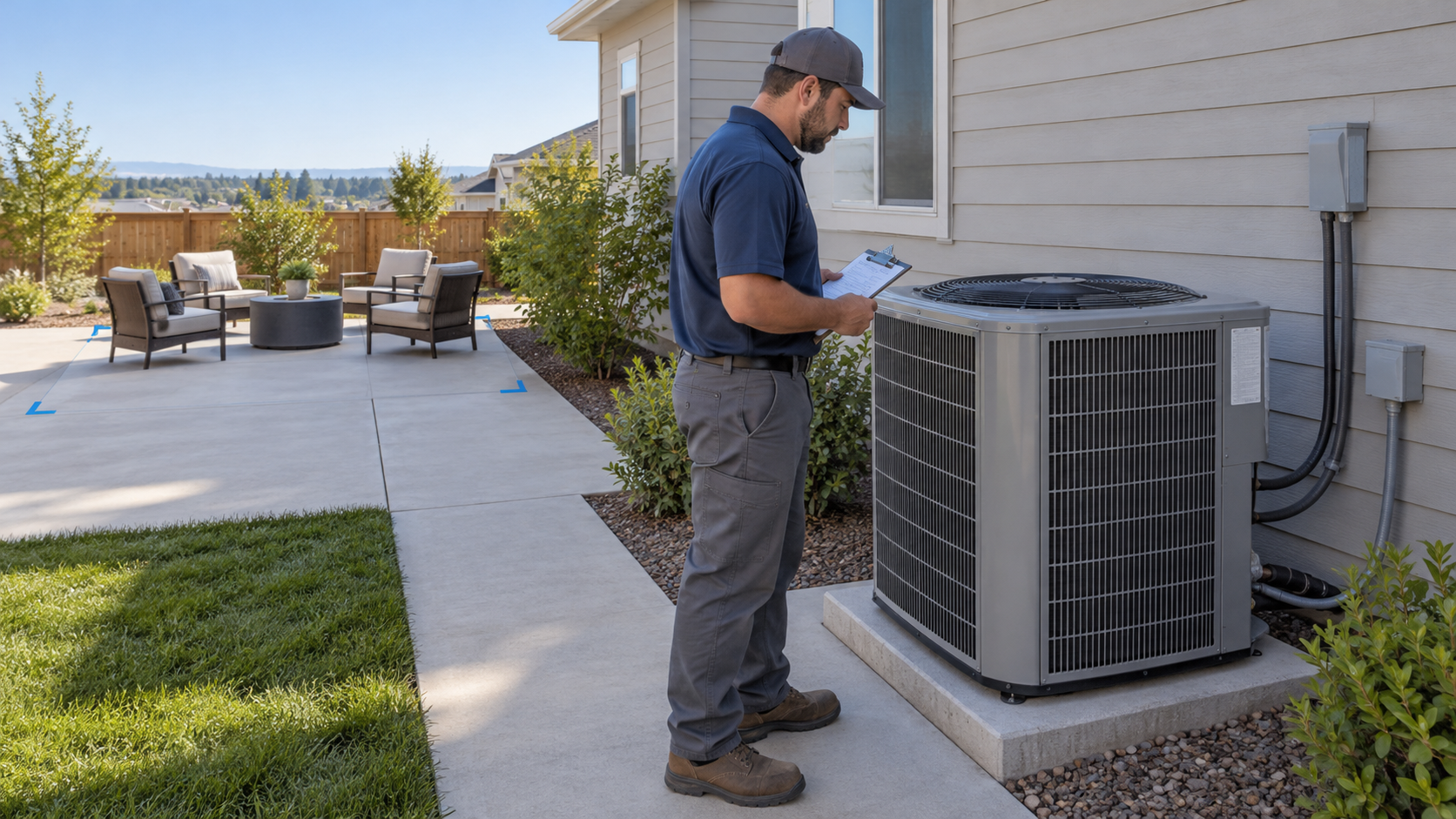

- Keep a service route. The technician needs access to the required panels and space for maintenance and eventual equipment replacement. Keep furniture and storage out of that route.
- Check water discharge. Sera’s closed-roof drainage runs through beam channels and posts to outlets near the base. Show those outlets on the plan and arrange site drainage so runoff is not directed at the HVAC equipment or its electrical connections.

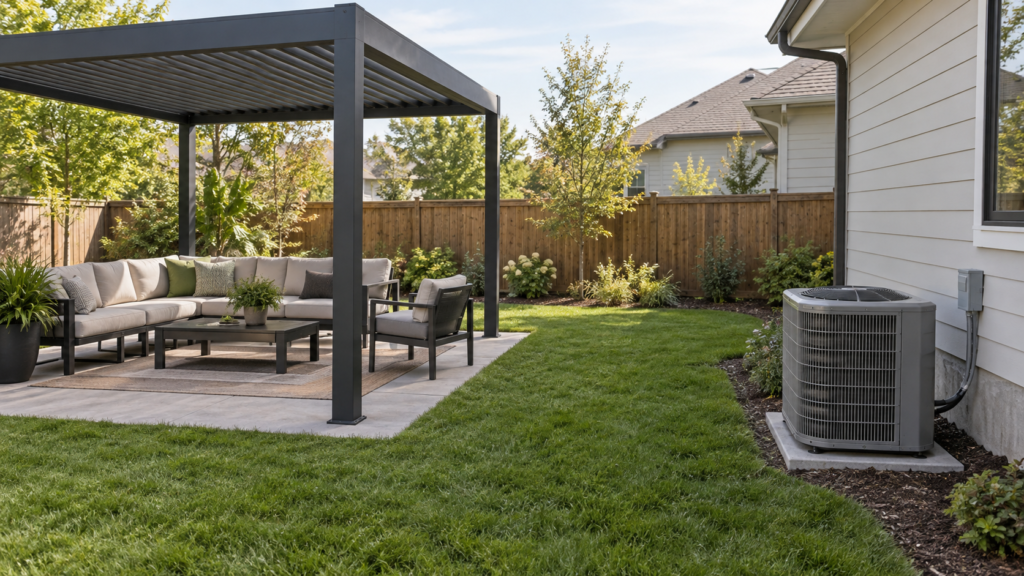

For many patios, the first layout worth considering is a shaded seating area beside the equipment area, with the condenser left under open sky. Confirm that the chosen separation meets the equipment instructions; the distance shown in a photograph is not a dimension to copy.
Sera’s nominal 3 by 3, 3 by 4, and 4 by 4 meter footprints describe the pergola, not an HVAC clearance. Ask for the exact pergola drawing and review the posts, foundations, access, and drainage together. If the available space cannot meet both sets of requirements, change the seating location before ordering.
Questions about pergolas and outdoor AC units
How much clearance does an AC unit need below a Sera roof?
The Louvano Sera Motorized Louvered Pergola has no published universal clearance for outdoor air conditioners. The required space comes from the exact HVAC equipment instructions and the proposed surrounding layout. Sera’s louvers rotate from 0 to 120 degrees, so the assessment must include the closed roof rather than an open position alone.
Will a Sera pergola lower my air-conditioning bill?
The Louvano Sera Motorized Louvered Pergola provides an adjustable aluminum roof, but the current specification does not establish an air-conditioning energy saving. Outdoor condensers rely on airflow to release heat. Do not choose a roof location on the assumption that shade will offset restricted airflow or improve the equipment’s efficiency.
Can Sera drainage outlets discharge beside an AC unit?
The Louvano Sera Motorized Louvered Pergola routes closed-roof water through beam channels and posts to outlets near the base. Plan where that water will go at your site. Keep the discharge away from HVAC equipment and electrical connections, and have the proposed ground drainage checked before fixing the post positions.
Does leaving Sera louvers open solve the airflow issue?
The Louvano Sera Motorized Louvered Pergola uses a concealed motor and remote control to rotate its louvers from 0 to 120 degrees. Roof operation does not provide HVAC approval. A suitable layout must satisfy the exact outdoor unit’s instructions in the roof positions that may occur during normal use, including closure.
Send the roof plan to both installers
Collect the outdoor unit’s model, its manual, site photographs, and the proposed pergola footprint. Ask your HVAC contractor to review the equipment space, and request the Sera drawing and drainage details before confirming the order. Resolve the equipment layout first, then select the shaded seating area.
