Yes, in many cases. A concrete patio in good condition is a common base for a freestanding motorized aluminum louvered pergola. Whether your slab will work depends on its thickness and condition, what is on top of it and under it, and what your local building code requires.

The exact anchoring method for a Louvano pergola should be confirmed against the product drawings and local codes. This article covers what to check on your slab before you order, so there are fewer surprises on install day.

Is an existing concrete patio strong enough for a pergola?

It might be. A patio slab is usually poured as a flat surface to walk on. A pergola puts its weight on a few small points where the posts land, and it adds anchors that have to hold.

Many homeowners do not know how thick their patio is. That matters at the exact spots where the posts will stand. A contractor can check thickness at an exposed edge, or with a small test hole after checking what is under the slab (see the list below).

Some building departments require separate footings under the posts of a roofed structure, even when there is already a patio. In that case, the installer may cut out small sections of the slab and pour footings at the post locations. Your local code decides this, so ask early.

What should you check on the slab before ordering?

Walk the patio with this list:

• Thickness at the post locations. Unknown thickness is the most common open question.
• Cracks, sinking, or heaving. A slab that has moved before can keep moving. Have it looked at before you anchor posts to it.
• Edges. Anchors set too close to the edge of a slab can break the concrete. Plan the post layout with some distance from the edge.
• Slope. Most patios slope slightly so water runs off. Note which way it falls, since the posts will release rainwater at their bases.
• What is underneath. Look for buried gas, water, irrigation, or electrical lines, and for in-slab heating. Some slabs are post-tensioned, with steel cables under tension inside the concrete. Drilling into one of those without a professional check is dangerous. If you are not sure, ask a contractor before anyone drills.

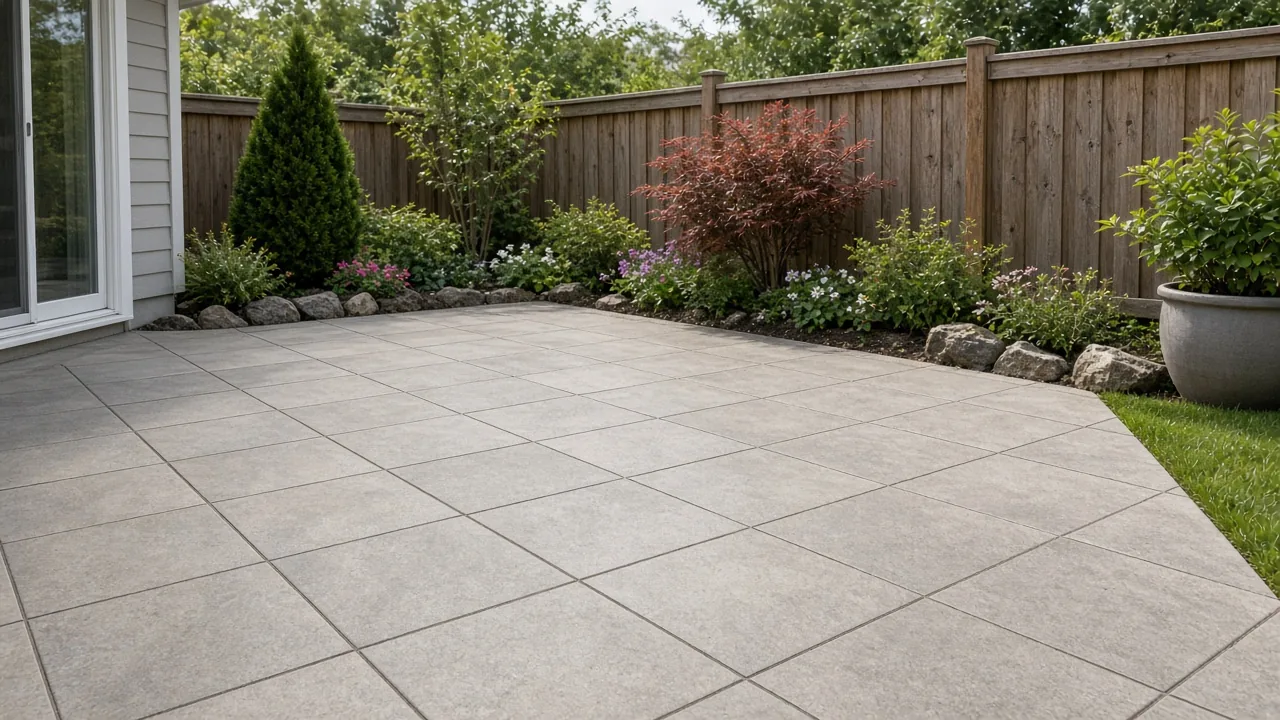

Can you anchor a pergola to concrete that has tile or stone on top?

Tile and stone are finish layers. The posts need to anchor into structural concrete, so the installer has to get through the finish without cracking it.

Drilling through ceramic tile can chip or crack it, and the tile layer adds height between the post base and the concrete. Many installers remove the tile at each post location so the base sits on the concrete itself. Talk this through with your installer before the order is final.

If your patio is pavers set on sand or gravel, that is a different situation. See can you put a louvered pergola on pavers.

What anchors and fasteners does a louvered pergola need on concrete?

Louvano frames are assembled with 304 stainless steel fasteners. The anchors that hold the post bases to your slab are a separate decision. Anchor type, size, and depth depend on the product drawings, the slab, and your local code.

Generic advice from small wood pergola kits does not carry over to a motorized aluminum frame. Have your installer confirm the anchor plan against the product drawings and local codes before drilling.

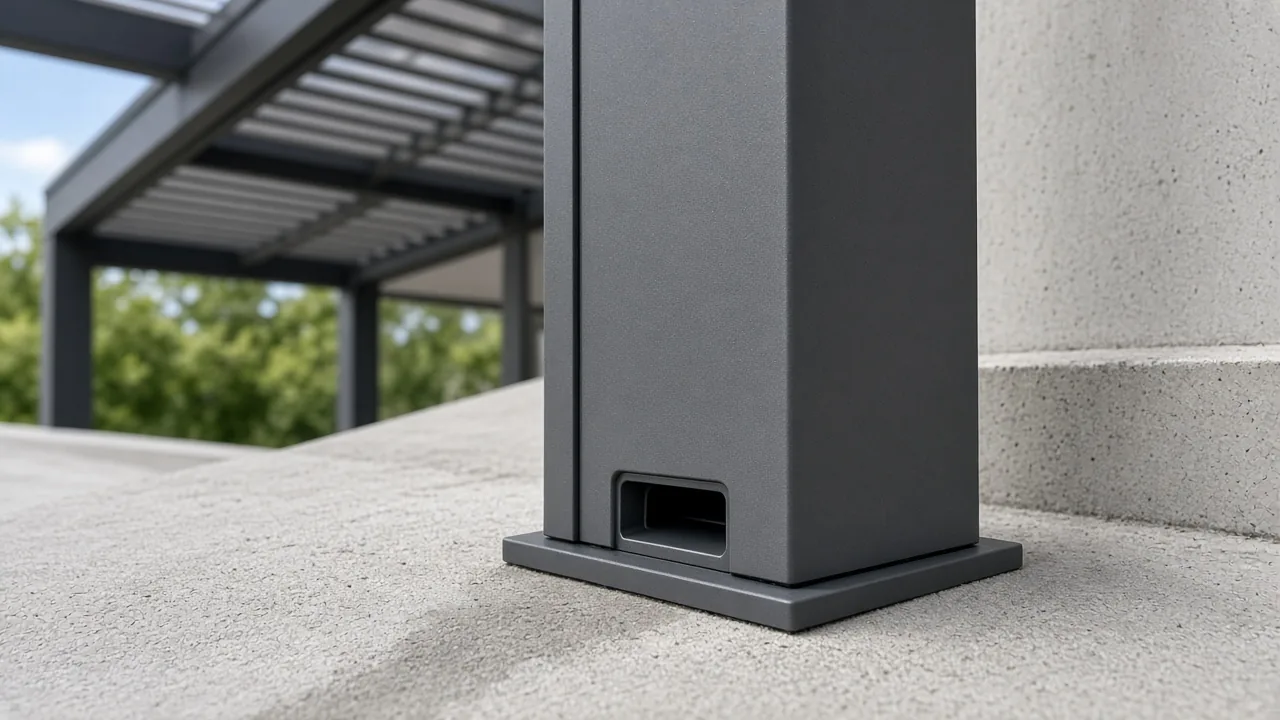

Where does rainwater go when the pergola sits on concrete?

Louvano pergolas use concealed drainage. When the louvers are closed, rain runs from the louvers into the beam channels and then down through the posts. The water comes out near the base of the posts, right onto your slab.

That means the slab has to move the water away:

• The patio should slope away from the house.
• Water should not pond around the post bases.
• The runoff should not cross a door threshold or a main walking path.

If your patio is flat or slopes toward the house, plan a fix before installation. For more detail, read how a louvered pergola drains water.

Should you plan the electrical before installing on concrete?

Yes. A motorized pergola needs power to rotate the louvers. On a Louvano pergola, the motor is hidden in the frame. Power has to reach the structure, usually at a post.

Getting a wire under an existing slab is harder than planning it before concrete work. Your electrician may run conduit along the surface, trench beside the slab, or core through it. Decide this with the electrician before the posts go in. See motorized pergola electrical requirements.

Does freestanding vs wall-mounted change the concrete question?

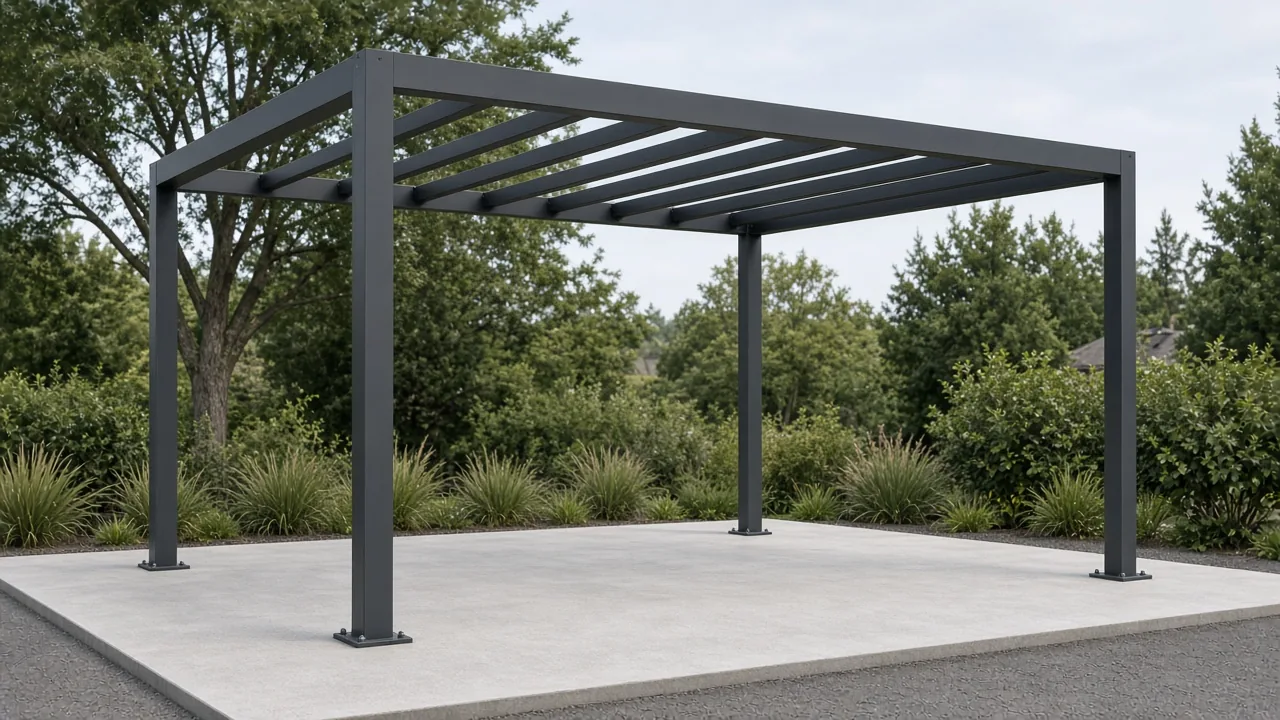

A freestanding pergola puts all of its posts on the slab, so the whole structure depends on the concrete and its anchors.

A wall-related layout relates the structure to the house wall, which brings in wall attachment and flashing questions, and it still has posts on the slab. Whether a wall-mounted layout is available for your site is something to confirm with [email protected]. Our freestanding vs wall-mounted guide covers the checks on both sides.

Do you need a permit to put a pergola on a concrete patio?

It depends on where you live. A motorized louvered roof that can close is often reviewed more like a patio cover than an open pergola. Your HOA may have its own review on top of the city or county.

We cannot tell you whether your project will be approved. Our pergola permit guide explains what to ask and which documents to gather.

Which size fits your concrete patio?

Louvano offers two standard sizes: 10×13 and 10×20. Measure the slab and mark where the posts would land for each one. Leave room at the slab edges and around doors and furniture. The size guide walks through the measurements.

FAQ

Can a thin patio slab hold a louvered pergola? It depends on the actual thickness and condition at the post locations and on your local code. Some projects add footings under the posts. Have a contractor check before you order.

Do I need footings if I already have a concrete patio? Possibly. Some building departments require footings under the posts of a roofed structure. Ask your local building department and confirm against the product drawings.

Can I drill into my patio myself? Check for buried lines, in-slab heating, and post-tensioned concrete first. Anchor details should be confirmed against the product drawings and local codes, and many homeowners use a qualified installer.

What if my slab is cracked? Have a contractor look at it. Hairline surface cracks are common. Cracks with height differences or signs of movement need attention before anything is anchored to the slab.

Who do I ask before ordering? Email [email protected] with photos of your patio, the slab size, and the pergola size you are considering. After you order, ownership questions go to [email protected].
